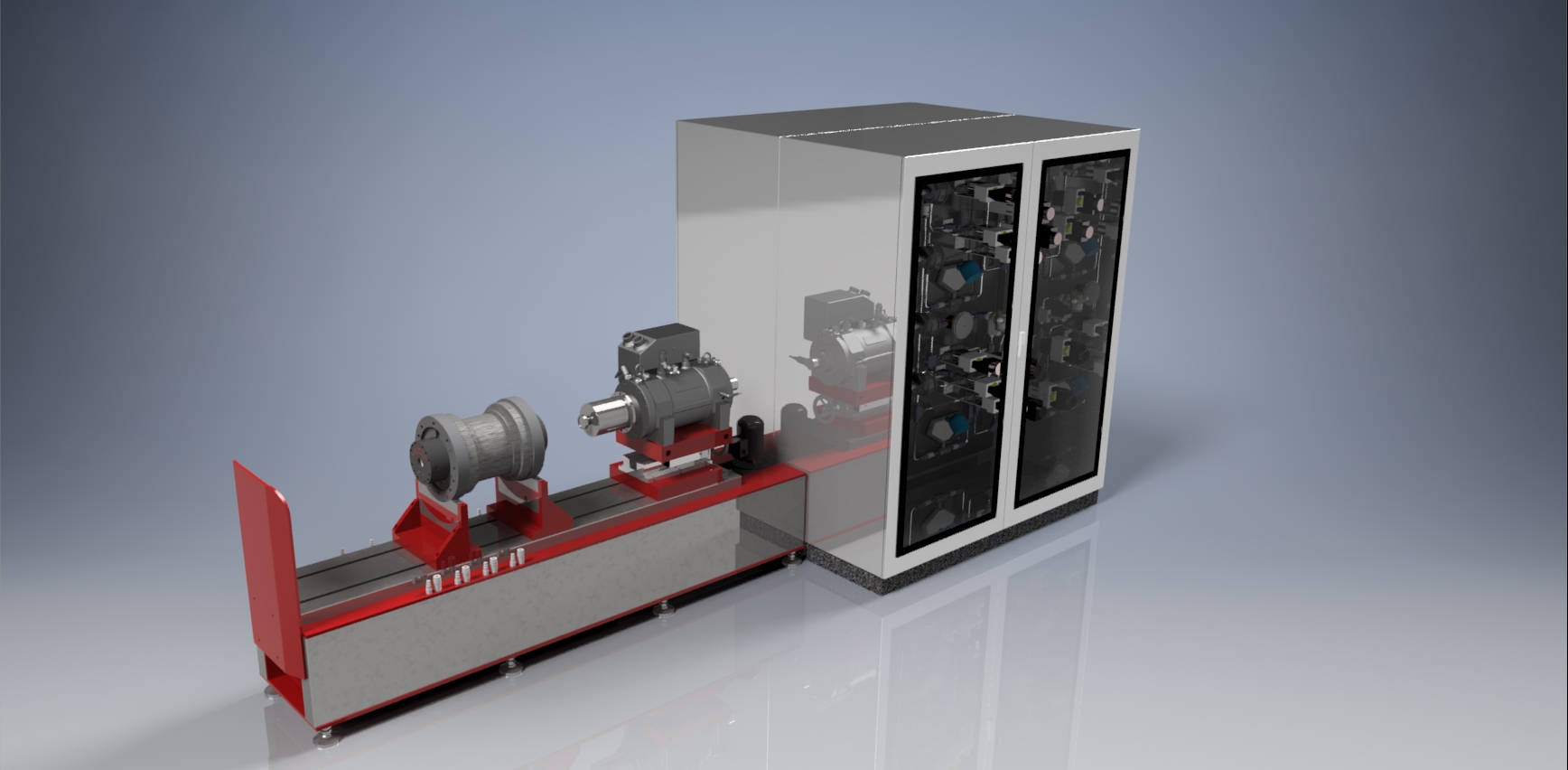

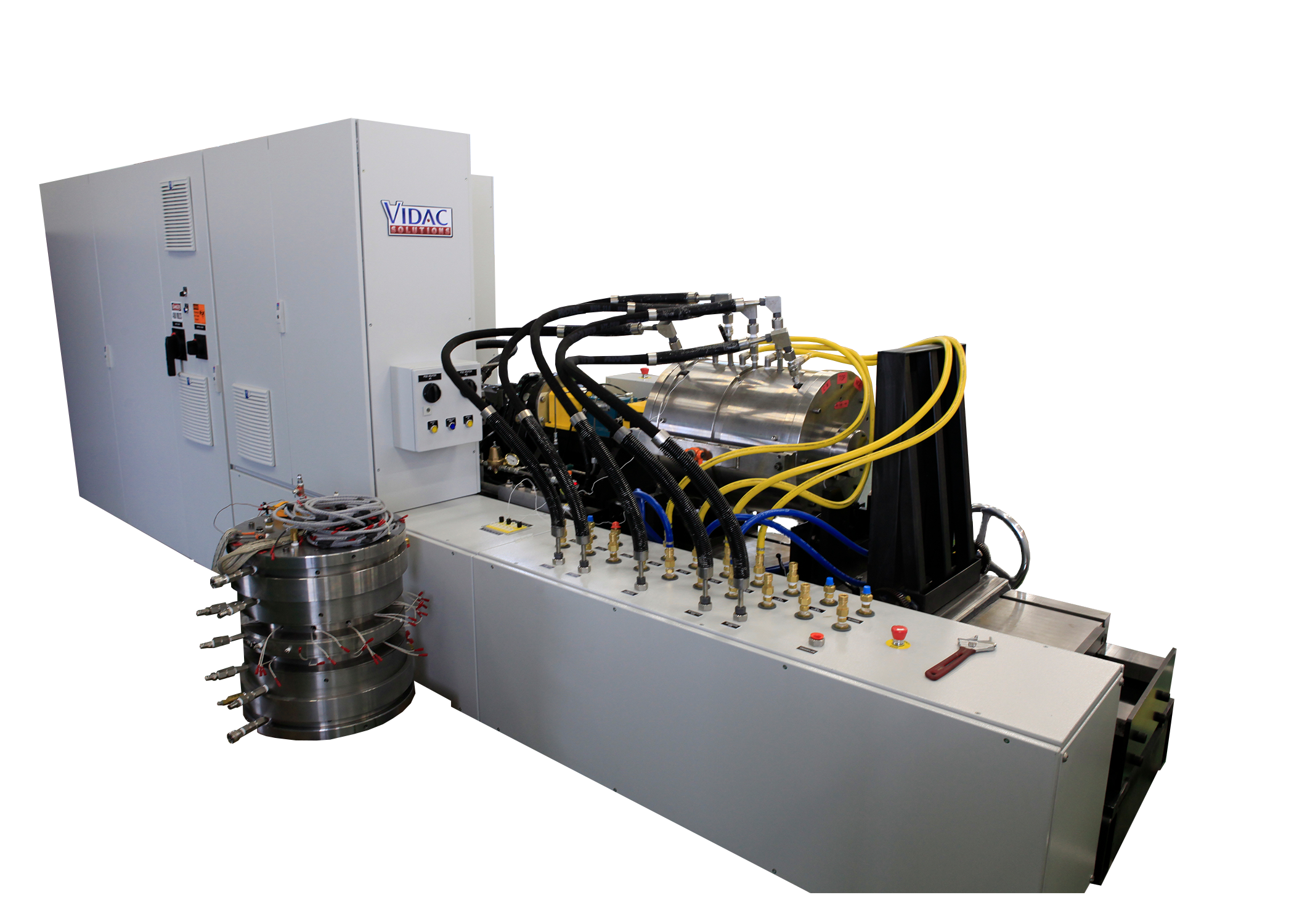

Dry Gas Seal Tester V 1.5
36,000 RPM

This system is designed to evaluate dry gas compressor seals and, like all others we have built, runs a API-692 test in automated mode

All support equipment such as oil pressure, temperature control and safety is automatically configured for both the test system and the seal under test.

This particular tester has a single-output shaft that operates from 2 RPM to 36,000 RPM with very high break away torque capacity.

Seal types tested:
– Single
– Tandem
– Double

Parameters:
– Speed: 2  RPM to 36,000 RPM
– Inlet Pressure: up to 1,000 BAR with 3 gas selection
– Outlet Pressure: 400 BAR
– Remote viewing
– SQL data storage and trending
